task.h File Reference
This file is part of the Xenomai project. More...

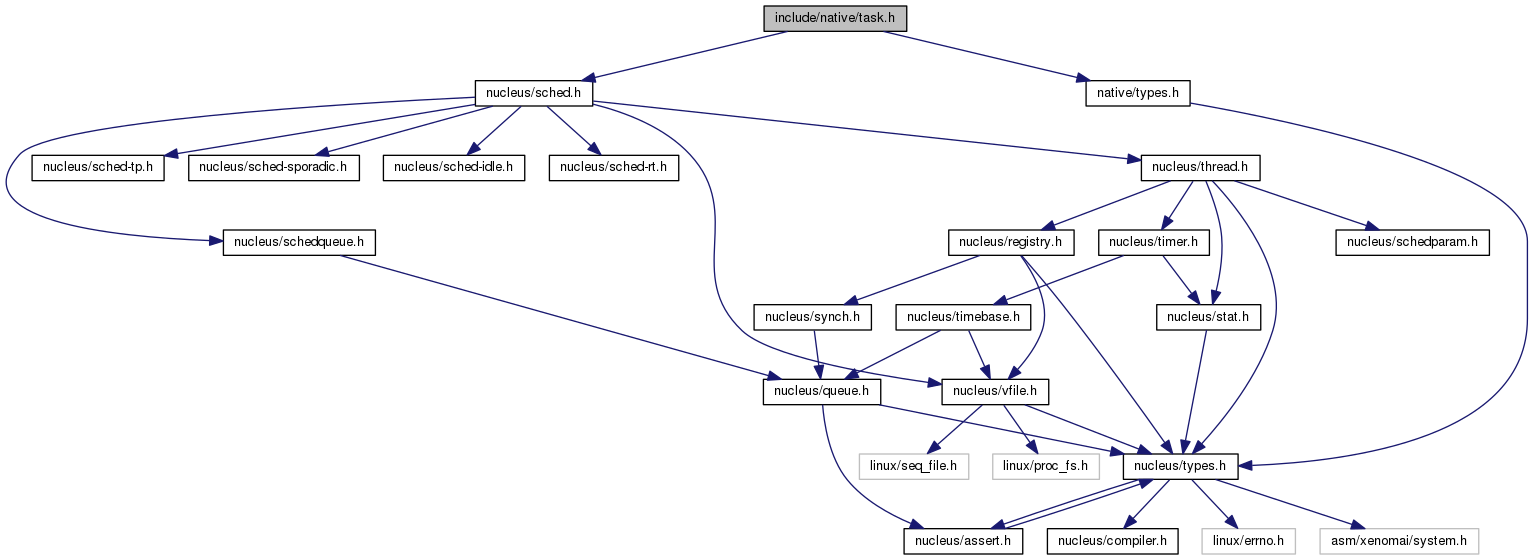

Include dependency graph for task.h:

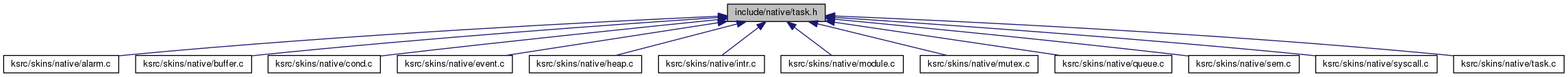

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Data Structures | |
| struct | rt_task_info |
| Structure containing task-information useful to users. More... | |
| struct | rt_task_mcb |
| Structure used in passing messages between tasks. More... | |
Macros | |
| #define | T_BLOCKED XNPEND |
| See XNPEND. | |
| #define | T_DELAYED XNDELAY |
| See XNDELAY. | |
| #define | T_READY XNREADY |
| See XNREADY. | |
| #define | T_DORMANT XNDORMANT |
| See XNDORMANT. | |
| #define | T_STARTED XNSTARTED |
| See XNSTARTED. | |
| #define | T_BOOST XNBOOST |
| See XNBOOST. | |
| #define | T_LOCK XNLOCK |
| See XNLOCK. | |
| #define | T_NOSIG XNASDI |
| See XNASDI. | |
| #define | T_WARNSW XNTRAPSW |
| See XNTRAPSW. | |
| #define | T_RPIOFF XNRPIOFF |
| See XNRPIOFF. | |
Typedefs | |
| typedef struct rt_task_info | RT_TASK_INFO |
| Structure containing task-information useful to users. More... | |
| typedef struct rt_task_mcb | RT_TASK_MCB |
| Structure used in passing messages between tasks. More... | |
Functions | |
| int | rt_task_shadow (RT_TASK *task, const char *name, int prio, int mode) |
| Turns the current Linux task into a native Xenomai task. More... | |
| int | rt_task_bind (RT_TASK *task, const char *name, RTIME timeout) |
| Bind to a real-time task. More... | |
| static int | rt_task_unbind (RT_TASK *task) |
| Unbind from a real-time task. More... | |
| int | rt_task_join (RT_TASK *task) |
| Wait on the termination of a real-time task. More... | |
| int | rt_task_create (RT_TASK *task, const char *name, int stksize, int prio, int mode) __deprecated_in_kernel__ |
| Create a new real-time task. More... | |
| int | rt_task_start (RT_TASK *task, void(*fun)(void *cookie), void *cookie) |
| Start a real-time task. More... | |
| int | rt_task_suspend (RT_TASK *task) |
| Suspend a real-time task. More... | |
| int | rt_task_resume (RT_TASK *task) |
| Resume a real-time task. More... | |
| int | rt_task_delete (RT_TASK *task) |
| Delete a real-time task. More... | |
| int | rt_task_yield (void) |
| Manual round-robin. More... | |
| int | rt_task_set_periodic (RT_TASK *task, RTIME idate, RTIME period) |
| Make a real-time task periodic. More... | |
| int | rt_task_wait_period (unsigned long *overruns_r) |
| Wait for the next periodic release point. More... | |
| int | rt_task_set_priority (RT_TASK *task, int prio) |
| Change the base priority of a real-time task. More... | |
| int | rt_task_sleep (RTIME delay) |
| Delay the calling task (relative). More... | |
| int | rt_task_sleep_until (RTIME date) |
| Delay the calling task (absolute). More... | |
| int | rt_task_unblock (RT_TASK *task) |
| Unblock a real-time task. More... | |
| int | rt_task_inquire (RT_TASK *task, RT_TASK_INFO *info) |
| Inquire about a real-time task. More... | |
| int | rt_task_notify (RT_TASK *task, rt_sigset_t sigs) |
| Send signals to a task. More... | |
| int | rt_task_set_mode (int clrmask, int setmask, int *mode_r) |
| Change task mode bits. More... | |
| RT_TASK * | rt_task_self (void) |
| Retrieve the current task. More... | |
| int | rt_task_slice (RT_TASK *task, RTIME quantum) |
| Set a task's round-robin quantum. More... | |
| ssize_t | rt_task_send (RT_TASK *task, RT_TASK_MCB *mcb_s, RT_TASK_MCB *mcb_r, RTIME timeout) |
| Send a message to a task. More... | |
| int | rt_task_receive (RT_TASK_MCB *mcb_r, RTIME timeout) |
| Receive a message from a task. More... | |
| int | rt_task_reply (int flowid, RT_TASK_MCB *mcb_s) |
| Reply to a task. More... | |
| static int | rt_task_spawn (RT_TASK *task, const char *name, int stksize, int prio, int mode, void(*entry)(void *cookie), void *cookie) |
| Spawn a new real-time task. More... | |
| int | rt_task_same (RT_TASK *task1, RT_TASK *task2) |
| Compare two task descriptors. More... | |
Detailed Description
This file is part of the Xenomai project.
- Note
- Copyright (C) 2004 Philippe Gerum rpm@xenomai.org
This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.
You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.
Typedef Documentation
| typedef struct rt_task_info RT_TASK_INFO |
Structure containing task-information useful to users.
- See also
- rt_task_inquire()
| typedef struct rt_task_mcb RT_TASK_MCB |
Structure used in passing messages between tasks.
- See also
- rt_task_send(), rt_task_reply(), rt_task_receive()
