rtdm_device Struct Reference

RTDM device. More...

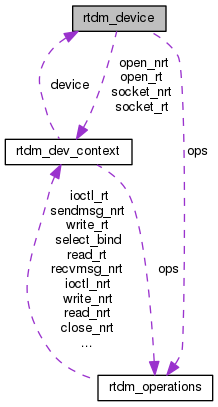

Collaboration diagram for rtdm_device:

Data Fields
int	struct_version
	Revision number of this structure, see Driver Versioning defines.
int	device_flags
	Device flags, see Device Flags for details.
size_t	context_size
	Size of driver defined appendix to struct rtdm_dev_context.
char	device_name [RTDM_MAX_DEVNAME_LEN+1]
	Named device identification (orthogonal to Linux device name space)
int	protocol_family
	Protocol device identification: protocol family (PF_xxx)
int	socket_type
	Protocol device identification: socket type (SOCK_xxx)
rtdm_open_handler_t	open_rt
	Named device instance creation for real-time contexts, optional (but deprecated) if open_nrt is non-NULL, ignored for protocol devices. More...
rtdm_open_handler_t	open_nrt
	Named device instance creation for non-real-time contexts, optional if open_rt is non-NULL, ignored for protocol devices.
rtdm_socket_handler_t	socket_rt
	Protocol socket creation for real-time contexts, optional (but deprecated) if socket_nrt is non-NULL, ignored for named devices. More...
rtdm_socket_handler_t	socket_nrt
	Protocol socket creation for non-real-time contexts, optional if socket_rt is non-NULL, ignored for named devices.
struct rtdm_operations	ops
	Default operations on newly opened device instance.
int	device_class
	Device class ID, see RTDM_CLASS_xxx.
int	device_sub_class
	Device sub-class, see RTDM_SUBCLASS_xxx definition in the Device Profiles.
int	profile_version
	Supported device profile version.
const char *	driver_name
	Informational driver name (reported via /proc)
int	driver_version
	Driver version, see Driver Versioning defines.
const char *	peripheral_name
	Informational peripheral name the device is attached to (reported via /proc)
const char *	provider_name
	Informational driver provider name (reported via /proc)
const char *	proc_name
	Name of /proc entry for the device, must not be NULL.
int	device_id
	Driver definable device ID.
void *	device_data
	Driver definable device data.
struct rtdm_dev_reserved	reserved
	Data stored by RTDM inside a registered device (internal use only)

Detailed Description

RTDM device.

This structure specifies a RTDM device. As some fields, especially the reserved area, will be modified by RTDM during runtime, the structure must not reside in write-protected memory.

Field Documentation

rtdm_open_handler_t rtdm_device::open_rt

Named device instance creation for real-time contexts, optional (but deprecated) if open_nrt is non-NULL, ignored for protocol devices.

Deprecated:

Only use non-real-time open handler in new drivers.

Referenced by rtdm_dev_register().

rtdm_socket_handler_t rtdm_device::socket_rt

Protocol socket creation for real-time contexts, optional (but deprecated) if socket_nrt is non-NULL, ignored for named devices.

Deprecated:

Only use non-real-time socket creation handler in new drivers.

Referenced by rtdm_dev_register().

---

The documentation for this struct was generated from the following file:

• include/rtdm/rtdm_driver.h
