Synchronisation Services

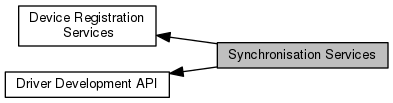

Collaboration diagram for Synchronisation Services:

Functions
int	rtdm_select_bind (int fd, rtdm_selector_t *selector, enum rtdm_selecttype type, unsigned fd_index)
	Bind a selector to specified event types of a given file descriptor. More...

RTDM_SELECTTYPE_xxx
Event types select can bind to
enum	rtdm_selecttype { RTDM_SELECTTYPE_READ = XNSELECT_READ, RTDM_SELECTTYPE_WRITE = XNSELECT_WRITE, RTDM_SELECTTYPE_EXCEPT = XNSELECT_EXCEPT }

Global Lock across Scheduler Invocation
#define	RTDM_EXECUTE_ATOMICALLY(code_block)
	Execute code block atomically. More...

Spinlock with Preemption Deactivation
typedef rthal_spinlock_t	rtdm_lock_t
	Lock variable.
typedef unsigned long	rtdm_lockctx_t
	Variable to save the context while holding a lock.
#define	RTDM_LOCK_UNLOCKED   RTHAL_SPIN_LOCK_UNLOCKED
	Static lock initialisation.
#define	rtdm_lock_init(lock)   rthal_spin_lock_init(lock)
	Dynamic lock initialisation. More...
#define	rtdm_lock_get(lock)   rthal_spin_lock(lock)
	Acquire lock from non-preemptible contexts. More...
#define	rtdm_lock_put(lock)
	Release lock without preemption restoration. More...
#define	rtdm_lock_get_irqsave(lock, context)
	Acquire lock and disable preemption. More...
#define	rtdm_lock_put_irqrestore(lock, context)
	Release lock and restore preemption state. More...
#define	rtdm_lock_irqsave(context)   rthal_local_irq_save(context)
	Disable preemption locally. More...
#define	rtdm_lock_irqrestore(context)   rthal_local_irq_restore(context)
	Restore preemption state. More...

Timeout Sequence Management
void	rtdm_toseq_init (rtdm_toseq_t *timeout_seq, nanosecs_rel_t timeout)
	Initialise a timeout sequence. More...
	EXPORT_SYMBOL_GPL (rtdm_toseq_init)
	Initialise a timeout sequence. More...

Event Services
void	rtdm_event_init (rtdm_event_t *event, unsigned long pending)
	Initialise an event. More...
	EXPORT_SYMBOL_GPL (rtdm_event_init)
	Initialise an event. More...
void	rtdm_event_destroy (rtdm_event_t *event)
	Destroy an event. More...
void	rtdm_event_pulse (rtdm_event_t *event)
	Signal an event occurrence to currently listening waiters. More...
void	rtdm_event_signal (rtdm_event_t *event)
	Signal an event occurrence. More...
	EXPORT_SYMBOL_GPL (rtdm_event_signal)
	Initialise an event. More...
int	rtdm_event_wait (rtdm_event_t *event)
	Wait on event occurrence. More...
	EXPORT_SYMBOL_GPL (rtdm_event_wait)
	Initialise an event. More...
int	rtdm_event_timedwait (rtdm_event_t *event, nanosecs_rel_t timeout, rtdm_toseq_t *timeout_seq)
	Wait on event occurrence with timeout. More...
	EXPORT_SYMBOL_GPL (rtdm_event_timedwait)
	Initialise an event. More...
void	rtdm_event_clear (rtdm_event_t *event)
	Clear event state. More...
	EXPORT_SYMBOL_GPL (rtdm_event_clear)
	Initialise an event. More...
int	rtdm_event_select_bind (rtdm_event_t *event, rtdm_selector_t *selector, enum rtdm_selecttype type, unsigned fd_index)
	Bind a selector to an event. More...
	EXPORT_SYMBOL_GPL (rtdm_event_select_bind)
	Initialise an event. More...

Semaphore Services
void	rtdm_sem_init (rtdm_sem_t *sem, unsigned long value)
	Initialise a semaphore. More...
	EXPORT_SYMBOL_GPL (rtdm_sem_init)
	Initialise a semaphore. More...
void	rtdm_sem_destroy (rtdm_sem_t *sem)
	Destroy a semaphore. More...
int	rtdm_sem_down (rtdm_sem_t *sem)
	Decrement a semaphore. More...
	EXPORT_SYMBOL_GPL (rtdm_sem_down)
	Initialise a semaphore. More...
int	rtdm_sem_timeddown (rtdm_sem_t *sem, nanosecs_rel_t timeout, rtdm_toseq_t *timeout_seq)
	Decrement a semaphore with timeout. More...
	EXPORT_SYMBOL_GPL (rtdm_sem_timeddown)
	Initialise a semaphore. More...
void	rtdm_sem_up (rtdm_sem_t *sem)
	Increment a semaphore. More...
	EXPORT_SYMBOL_GPL (rtdm_sem_up)
	Initialise a semaphore. More...
int	rtdm_sem_select_bind (rtdm_sem_t *sem, rtdm_selector_t *selector, enum rtdm_selecttype type, unsigned fd_index)
	Bind a selector to a semaphore. More...
	EXPORT_SYMBOL_GPL (rtdm_sem_select_bind)
	Initialise a semaphore. More...

Mutex Services
void	rtdm_mutex_init (rtdm_mutex_t *mutex)
	Initialise a mutex. More...
	EXPORT_SYMBOL_GPL (rtdm_mutex_init)
	Initialise a mutex. More...
void	rtdm_mutex_destroy (rtdm_mutex_t *mutex)
	Destroy a mutex. More...
void	rtdm_mutex_unlock (rtdm_mutex_t *mutex)
	Release a mutex. More...
int	rtdm_mutex_lock (rtdm_mutex_t *mutex)
	Request a mutex. More...
	EXPORT_SYMBOL_GPL (rtdm_mutex_lock)
	Initialise a mutex. More...
int	rtdm_mutex_timedlock (rtdm_mutex_t *mutex, nanosecs_rel_t timeout, rtdm_toseq_t *timeout_seq)
	Request a mutex with timeout. More...
	EXPORT_SYMBOL_GPL (rtdm_mutex_timedlock)
	Initialise a mutex. More...

Detailed Description

Macro Definition Documentation

#define RTDM_EXECUTE_ATOMICALLY

(

code_block

)

Value:

{                                               \
        <ENTER_ATOMIC_SECTION>                  \
        code_block;                             \
        <LEAVE_ATOMIC_SECTION>                  \
}

Execute code block atomically.

Generally, it is illegal to suspend the current task by calling rtdm_task_sleep(), rtdm_event_wait(), etc. while holding a spinlock. In contrast, this macro allows to combine several operations including a potentially rescheduling call to an atomic code block with respect to other RTDM_EXECUTE_ATOMICALLY() blocks. The macro is a light-weight alternative for protecting code blocks via mutexes, and it can even be used to synchronise real-time and non-real-time contexts.

Parameters

code_block

Commands to be executed atomically

Note

It is not allowed to leave the code block explicitly by using break, return, goto, etc. This would leave the global lock held during the code block execution in an inconsistent state. Moreover, do not embed complex operations into the code bock. Consider that they will be executed under preemption lock with interrupts switched-off. Also note that invocation of rescheduling calls may break the atomicity until the task gains the CPU again.

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible, depends on functions called within code_block.

#define rtdm_lock_get

(

lock

)

rthal_spin_lock(lock)

Acquire lock from non-preemptible contexts.

Parameters

lock	Address of lock variable

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

#define rtdm_lock_get_irqsave	(		lock,
			context
	)

Value:

do {                                            \
                rthal_spin_lock_irqsave(lock, context); \
                __xnpod_lock_sched();                   \
        } while (0)

Acquire lock and disable preemption.

Parameters

lock	Address of lock variable
context	name of local variable to store the context in

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

Referenced by rtdm_ratelimit().

#define rtdm_lock_init

(

lock

)

rthal_spin_lock_init(lock)

Dynamic lock initialisation.

Parameters

lock	Address of lock variable

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

#define rtdm_lock_irqrestore

(

context

)

rthal_local_irq_restore(context)

Restore preemption state.

Parameters

context

name of local variable which stored the context

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

#define rtdm_lock_irqsave

(

context

)

rthal_local_irq_save(context)

Disable preemption locally.

Parameters

context

name of local variable to store the context in

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

#define rtdm_lock_put

(

lock

)

Value:

do {                                    \
                rthal_spin_unlock(lock);        \
                __xnpod_unlock_sched();         \
        } while (0)

Release lock without preemption restoration.

Parameters

lock	Address of lock variable

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

#define rtdm_lock_put_irqrestore	(		lock,
			context
	)

Value:

do {                                            \
                rthal_spin_unlock(lock);                \
                __xnpod_unlock_sched();                 \
                rthal_local_irq_restore(context);       \
        } while (0)

Release lock and restore preemption state.

Parameters

lock	Address of lock variable
context	name of local variable which stored the context

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

Referenced by rtdm_ratelimit().

Enumeration Type Documentation

enum rtdm_selecttype

Enumerator
RTDM_SELECTTYPE_READ	Select input data availability events.
RTDM_SELECTTYPE_WRITE	Select ouput buffer availability events.
RTDM_SELECTTYPE_EXCEPT	Select exceptional events.

Function Documentation

EXPORT_SYMBOL_GPL

(

rtdm_toseq_init

)

Initialise a timeout sequence.

This service initialises a timeout sequence handle according to the given timeout value. Timeout sequences allow to maintain a continuous timeout across multiple calls of blocking synchronisation services. A typical application scenario is given below.

Parameters

[in,out]	timeout_seq	Timeout sequence handle
[in]	timeout	Relative timeout in nanoseconds, see RTDM_TIMEOUT_xxx for special values

Application Scenario:

int device_service_routine(...)
{
        rtdm_toseq_t timeout_seq;
        ...

        rtdm_toseq_init(&timeout_seq, timeout);
        ...
        while (received < requested) {
                ret = rtdm_event_timedwait(&data_available, timeout, &timeout_seq);
                if (ret < 0) // including -ETIMEDOUT
                        break;

                // receive some data
                ...
        }
        ...
}

Using a timeout sequence in such a scenario avoids that the user-provided relative timeout is restarted on every call to rtdm_event_timedwait(), potentially causing an overall delay that is larger than specified by timeout. Moreover, all functions supporting timeout sequences also interpret special timeout values (infinite and non-blocking), disburdening the driver developer from handling them separately.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_event_init

)

Initialise an event.

Parameters

[in,out]	event	Event handle
[in]	pending	Non-zero if event shall be initialised as set, 0 otherwise

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_event_signal

)

Initialise an event.

Parameters

[in,out]	event	Event handle
[in]	pending	Non-zero if event shall be initialised as set, 0 otherwise

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_event_wait

)

Initialise an event.

Parameters

[in,out]	event	Event handle
[in]	pending	Non-zero if event shall be initialised as set, 0 otherwise

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_event_timedwait

)

Initialise an event.

Parameters

[in,out]	event	Event handle
[in]	pending	Non-zero if event shall be initialised as set, 0 otherwise

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_event_clear

)

Initialise an event.

Parameters

[in,out]	event	Event handle
[in]	pending	Non-zero if event shall be initialised as set, 0 otherwise

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_event_select_bind

)

Initialise an event.

Parameters

[in,out]	event	Event handle
[in]	pending	Non-zero if event shall be initialised as set, 0 otherwise

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_sem_init

)

Initialise a semaphore.

Parameters

[in,out]	sem	Semaphore handle
[in]	value	Initial value of the semaphore

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_sem_down

)

Initialise a semaphore.

Parameters

[in,out]	sem	Semaphore handle
[in]	value	Initial value of the semaphore

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_sem_timeddown

)

Initialise a semaphore.

Parameters

[in,out]	sem	Semaphore handle
[in]	value	Initial value of the semaphore

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_sem_up

)

Initialise a semaphore.

Parameters

[in,out]	sem	Semaphore handle
[in]	value	Initial value of the semaphore

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_sem_select_bind

)

Initialise a semaphore.

Parameters

[in,out]	sem	Semaphore handle
[in]	value	Initial value of the semaphore

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_mutex_init

)

Initialise a mutex.

This function initalises a basic mutex with priority inversion protection. "Basic", as it does not allow a mutex owner to recursively lock the same mutex again.

Parameters

[in,out]

mutex

Mutex handle

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_mutex_lock

)

Initialise a mutex.

This function initalises a basic mutex with priority inversion protection. "Basic", as it does not allow a mutex owner to recursively lock the same mutex again.

Parameters

[in,out]

mutex

Mutex handle

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

EXPORT_SYMBOL_GPL

(

rtdm_mutex_timedlock

)

Initialise a mutex.

This function initalises a basic mutex with priority inversion protection. "Basic", as it does not allow a mutex owner to recursively lock the same mutex again.

Parameters

[in,out]

mutex

Mutex handle

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

void rtdm_event_clear

(

rtdm_event_t *

event

)

Clear event state.

Parameters

[in,out]

event

Event handle as returned by rtdm_event_init()

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

void rtdm_event_destroy

(

rtdm_event_t *

event

)

Destroy an event.

Parameters

[in,out]

event

Event handle as returned by rtdm_event_init()

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

void rtdm_event_init	(	rtdm_event_t *	event,
		unsigned long	pending
	)

Initialise an event.

Parameters

[in,out]	event	Event handle
[in]	pending	Non-zero if event shall be initialised as set, 0 otherwise

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

References xnselect_init(), and xnsynch_init().

void rtdm_event_pulse

(

rtdm_event_t *

event

)

Signal an event occurrence to currently listening waiters.

This function wakes up all current waiters of the given event, but it does not change the event state. Subsequently callers of rtdm_event_wait() or rtdm_event_timedwait() will therefore be blocked first.

Parameters

[in,out]

event

Event handle as returned by rtdm_event_init()

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

int rtdm_event_select_bind	(	rtdm_event_t *	event,
		rtdm_selector_t *	selector,
		enum rtdm_selecttype	type,
		unsigned	fd_index
	)

Bind a selector to an event.

This functions binds the given selector to an event so that the former is notified when the event state changes. Typically the select binding handler will invoke this service.

Parameters

[in,out]	event	Event handle as returned by rtdm_event_init()
[in,out]	selector	Selector as passed to the select binding handler
[in]	type	Type of the bound event as passed to the select binding handler
[in]	fd_index	File descriptor index as passed to the select binding handler

Returns

0 on success, otherwise:

• -ENOMEM is returned if there is insufficient memory to establish the dynamic binding.
• -EINVAL is returned if type or fd_index are invalid.

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

References xnselect_bind().

void rtdm_event_signal

(

rtdm_event_t *

event

)

Signal an event occurrence.

This function sets the given event and wakes up all current waiters. If no waiter is presently registered, the next call to rtdm_event_wait() or rtdm_event_timedwait() will return immediately.

Parameters

[in,out]

event

Event handle as returned by rtdm_event_init()

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

References xnpod_schedule(), and xnsynch_flush().

int rtdm_event_timedwait	(	rtdm_event_t *	event,
		nanosecs_rel_t	timeout,
		rtdm_toseq_t *	timeout_seq
	)

Wait on event occurrence with timeout.

This function waits or tests for the occurence of the given event, taking the provided timeout into account. On successful return, the event is reset.

Parameters

[in,out]	event	Event handle as returned by rtdm_event_init()
[in]	timeout	Relative timeout in nanoseconds, see RTDM_TIMEOUT_xxx for special values
[in,out]	timeout_seq	Handle of a timeout sequence as returned by rtdm_toseq_init() or NULL

Returns

0 on success, otherwise:

• -ETIMEDOUT is returned if the if the request has not been satisfied within the specified amount of time.
• -EINTR is returned if calling task has been unblock by a signal or explicitly via rtdm_task_unblock().
• -EIDRM is returned if event has been destroyed.
• -EPERM may be returned if an illegal invocation environment is detected.
• -EWOULDBLOCK is returned if a negative timeout (i.e., non-blocking operation) has been specified.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: possible.

References XNBREAK, XNRMID, xnsynch_sleep_on(), and XNTIMEO.

Referenced by rtdm_event_wait().

int rtdm_event_wait

(

rtdm_event_t *

event

)

Wait on event occurrence.

This is the light-weight version of rtdm_event_timedwait(), implying an infinite timeout.

Parameters

[in,out]

event

Event handle as returned by rtdm_event_init()

Returns

0 on success, otherwise:

• -EINTR is returned if calling task has been unblock by a signal or explicitly via rtdm_task_unblock().
• -EIDRM is returned if event has been destroyed.
• -EPERM may be returned if an illegal invocation environment is detected.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: possible.

References rtdm_event_timedwait().

void rtdm_mutex_destroy

(

rtdm_mutex_t *

mutex

)

Destroy a mutex.

Parameters

[in,out]

mutex

Mutex handle as returned by rtdm_mutex_init()

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

void rtdm_mutex_init

(

rtdm_mutex_t *

mutex

)

Initialise a mutex.

This function initalises a basic mutex with priority inversion protection. "Basic", as it does not allow a mutex owner to recursively lock the same mutex again.

Parameters

[in,out]

mutex

Mutex handle

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

References xnsynch_init().

int rtdm_mutex_lock

(

rtdm_mutex_t *

mutex

)

Request a mutex.

This is the light-weight version of rtdm_mutex_timedlock(), implying an infinite timeout.

Parameters

[in,out]

mutex

Mutex handle as returned by rtdm_mutex_init()

Returns

0 on success, otherwise:

• -EIDRM is returned if mutex has been destroyed.
• -EPERM may be returned if an illegal invocation environment is detected.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: possible.

References rtdm_mutex_timedlock().

int rtdm_mutex_timedlock	(	rtdm_mutex_t *	mutex,
		nanosecs_rel_t	timeout,
		rtdm_toseq_t *	timeout_seq
	)

Request a mutex with timeout.

This function tries to acquire the given mutex. If it is not available, the caller is blocked unless non-blocking operation was selected.

Parameters

[in,out]	mutex	Mutex handle as returned by rtdm_mutex_init()
[in]	timeout	Relative timeout in nanoseconds, see RTDM_TIMEOUT_xxx for special values
[in,out]	timeout_seq	Handle of a timeout sequence as returned by rtdm_toseq_init() or NULL

Returns

0 on success, otherwise:

• -ETIMEDOUT is returned if the if the request has not been satisfied within the specified amount of time.
• -EWOULDBLOCK is returned if timeout is negative and the semaphore value is currently not positive.
• -EIDRM is returned if mutex has been destroyed.
• -EPERM may be returned if an illegal invocation environment is detected.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: possible.

References XNBREAK, XNRMID, xnsynch_acquire(), and XNTIMEO.

Referenced by rtdm_mutex_lock().

void rtdm_mutex_unlock

(

rtdm_mutex_t *

mutex

)

Release a mutex.

This function releases the given mutex, waking up a potential waiter which was blocked upon rtdm_mutex_lock() or rtdm_mutex_timedlock().

Parameters

[in,out]

mutex

Mutex handle as returned by rtdm_mutex_init()

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: possible.

int rtdm_select_bind	(	int	fd,
		rtdm_selector_t *	selector,
		enum rtdm_selecttype	type,
		unsigned	fd_index
	)

Bind a selector to specified event types of a given file descriptor.

This function is invoked by higher RTOS layers implementing select-like services. It shall not be called directly by RTDM drivers.

Parameters

[in]	fd	File descriptor to bind to
[in,out]	selector	Selector object that shall be bound to the given event
[in]	type	Event type the caller is interested in
[in]	fd_index	Index in the file descriptor set of the caller

Returns

0 on success, otherwise:

• -EBADF is returned if the file descriptor fd cannot be resolved.
• -EINVAL is returned if type or fd_index are invalid.

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

References rtdm_dev_context::ops, rtdm_context_get(), rtdm_context_unlock(), and rtdm_operations::select_bind.

void rtdm_sem_destroy

(

rtdm_sem_t *

sem

)

Destroy a semaphore.

Parameters

[in,out]

sem

Semaphore handle as returned by rtdm_sem_init()

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

int rtdm_sem_down

(

rtdm_sem_t *

sem

)

Decrement a semaphore.

This is the light-weight version of rtdm_sem_timeddown(), implying an infinite timeout.

Parameters

[in,out]

sem

Semaphore handle as returned by rtdm_sem_init()

Returns

0 on success, otherwise:

• -EINTR is returned if calling task has been unblock by a signal or explicitly via rtdm_task_unblock().
• -EIDRM is returned if sem has been destroyed.
• -EPERM may be returned if an illegal invocation environment is detected.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: possible.

References rtdm_sem_timeddown().

void rtdm_sem_init	(	rtdm_sem_t *	sem,
		unsigned long	value
	)

Initialise a semaphore.

Parameters

[in,out]	sem	Semaphore handle
[in]	value	Initial value of the semaphore

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

References sem_init(), xnselect_init(), and xnsynch_init().

int rtdm_sem_select_bind	(	rtdm_sem_t *	sem,
		rtdm_selector_t *	selector,
		enum rtdm_selecttype	type,
		unsigned	fd_index
	)

Bind a selector to a semaphore.

This functions binds the given selector to the semaphore so that the former is notified when the semaphore state changes. Typically the select binding handler will invoke this service.

Parameters

[in,out]	sem	Semaphore handle as returned by rtdm_sem_init()
[in,out]	selector	Selector as passed to the select binding handler
[in]	type	Type of the bound event as passed to the select binding handler
[in]	fd_index	File descriptor index as passed to the select binding handler

Returns

0 on success, otherwise:

• -ENOMEM is returned if there is insufficient memory to establish the dynamic binding.
• -EINVAL is returned if type or fd_index are invalid.

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: never.

References xnselect_bind().

int rtdm_sem_timeddown	(	rtdm_sem_t *	sem,
		nanosecs_rel_t	timeout,
		rtdm_toseq_t *	timeout_seq
	)

Decrement a semaphore with timeout.

This function tries to decrement the given semphore's value if it is positive on entry. If not, the caller is blocked unless non-blocking operation was selected.

Parameters

[in,out]	sem	Semaphore handle as returned by rtdm_sem_init()
[in]	timeout	Relative timeout in nanoseconds, see RTDM_TIMEOUT_xxx for special values
[in,out]	timeout_seq	Handle of a timeout sequence as returned by rtdm_toseq_init() or NULL

Returns

0 on success, otherwise:

• -ETIMEDOUT is returned if the if the request has not been satisfied within the specified amount of time.
• -EWOULDBLOCK is returned if timeout is negative and the semaphore value is currently not positive.
• -EINTR is returned if calling task has been unblock by a signal or explicitly via rtdm_task_unblock().
• -EIDRM is returned if sem has been destroyed.
• -EPERM may be returned if an illegal invocation environment is detected.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: possible.

References sem_timedwait(), XNBREAK, XNRMID, xnsynch_sleep_on(), and XNTIMEO.

Referenced by rtdm_sem_down().

void rtdm_sem_up

(

rtdm_sem_t *

sem

)

Increment a semaphore.

This function increments the given semphore's value, waking up a potential waiter which was blocked upon rtdm_sem_down().

Parameters

[in,out]

sem

Semaphore handle as returned by rtdm_sem_init()

Environments:

This service can be called from:

• Kernel module initialization/cleanup code
• Interrupt service routine
• Kernel-based task
• User-space task (RT, non-RT)

Rescheduling: possible.

References xnpod_schedule(), and xnsynch_wakeup_one_sleeper().

void rtdm_toseq_init	(	rtdm_toseq_t *	timeout_seq,
		nanosecs_rel_t	timeout
	)

Initialise a timeout sequence.

This service initialises a timeout sequence handle according to the given timeout value. Timeout sequences allow to maintain a continuous timeout across multiple calls of blocking synchronisation services. A typical application scenario is given below.

Parameters

[in,out]	timeout_seq	Timeout sequence handle
[in]	timeout	Relative timeout in nanoseconds, see RTDM_TIMEOUT_xxx for special values

Application Scenario:

int device_service_routine(...)
{
        rtdm_toseq_t timeout_seq;
        ...

        rtdm_toseq_init(&timeout_seq, timeout);
        ...
        while (received < requested) {
                ret = rtdm_event_timedwait(&data_available, timeout, &timeout_seq);
                if (ret < 0) // including -ETIMEDOUT
                        break;

                // receive some data
                ...
        }
        ...
}

Using a timeout sequence in such a scenario avoids that the user-provided relative timeout is restarted on every call to rtdm_event_timedwait(), potentially causing an overall delay that is larger than specified by timeout. Moreover, all functions supporting timeout sequences also interpret special timeout values (infinite and non-blocking), disburdening the driver developer from handling them separately.

Environments:

This service can be called from:

• Kernel-based task
• User-space task (RT)

Rescheduling: never.
