Xenomai API  2.6.5
channel_range.h File Reference

Analogy for Linux, channel, range related features. More...

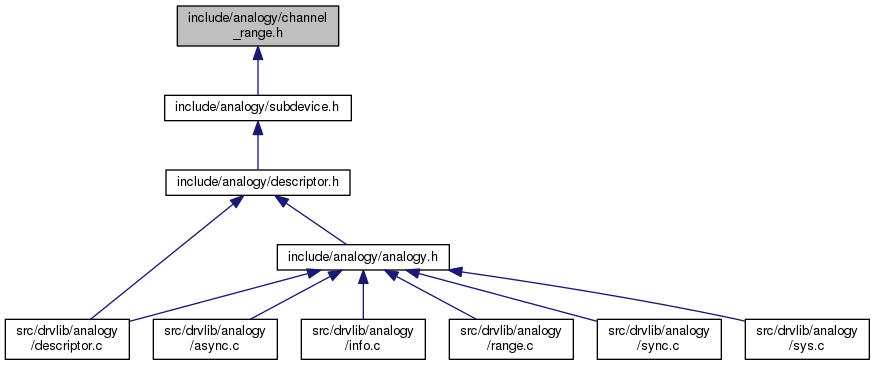

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  a4l_channel
 Structure describing some channel's characteristics. More...

struct  a4l_channels_desc
 Structure describing a channels set. More...

struct  a4l_range
 Structure describing a (unique) range. More...


Macros

#define A4L_CHAN_GLOBAL   0x10
 Internal use flag (must not be used by driver developer)

#define A4L_RNG_FACTOR   1000000
 Constant for internal use only (must not be used by driver developer). More...

#define A4L_RNG_VOLT_UNIT   0x0
 Volt unit range flag.

#define A4L_RNG_MAMP_UNIT   0x1
 MilliAmpere unit range flag.

#define A4L_RNG_NO_UNIT   0x2
 No unit range flag.

#define A4L_RNG_EXT_UNIT   0x4
 External unit range flag.

#define A4L_RNG_UNIT(x)
 Macro to retrieve the range unit from the range flags.

#define A4L_RNG_GLOBAL   0x8
 Internal use flag (must not be used by driver developer)

#define RANGE(x, y)
 Macro to declare a (unique) range with no unit defined.

#define RANGE_V(x, y)
 Macro to declare a (unique) range in Volt.

#define RANGE_mA(x, y)
 Macro to declare a (unique) range in milliAmpere.

#define RANGE_ext(x, y)
 Macro to declare a (unique) range in some external reference.

#define A4L_RNG_GLOBAL_RNGDESC   0
 Constant to define a ranges descriptor as global (inter-channel)

#define A4L_RNG_PERCHAN_RNGDESC   1
 Constant to define a ranges descriptor as specific for a channel.

#define RNG_GLOBAL(x)
 Macro to declare a ranges global descriptor in one line.

Channel reference

Flags to define the channel's reference

#define A4L_CHAN_AREF_GROUND   0x1
 Ground reference.

#define A4L_CHAN_AREF_COMMON   0x2
 Common reference.

#define A4L_CHAN_AREF_DIFF   0x4
 Differential reference.

#define A4L_CHAN_AREF_OTHER   0x8
 Misc reference.

Channels declaration mode

Constant to define whether the channels in a descriptor are identical

#define A4L_CHAN_GLOBAL_CHANDESC   0
 Global declaration, the set contains channels with similar characteristics.

#define A4L_CHAN_PERCHAN_CHANDESC   1
 Per channel declaration, the decriptor gathers differents channels.


Detailed Description

Analogy for Linux, channel, range related features.
