include/rtdm/rtserial.h File Reference

Real-Time Driver Model for Xenomai, serial device profile header. More...

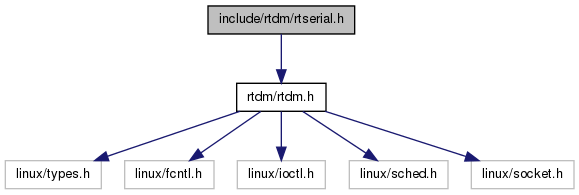

Include dependency graph for rtserial.h:

Go to the source code of this file.

Data Structures
struct	rtser_config
	Serial device configuration. More...
struct	rtser_status
	Serial device status. More...
struct	rtser_event
	Additional information about serial device events. More...
Defines
#define	RTSER_RTIOC_BREAK_CTL   _IOR(RTIOC_TYPE_SERIAL, 0x06, int)
	Set or clear break on UART output line.
RTSER_DEF_BAUD
Default baud rate
#define	RTSER_DEF_BAUD   9600
RTSER_xxx_PARITY
Number of parity bits
#define	RTSER_NO_PARITY   0x00
#define	RTSER_ODD_PARITY   0x01
#define	RTSER_EVEN_PARITY   0x03
#define	RTSER_DEF_PARITY   RTSER_NO_PARITY
RTSER_xxx_BITS
Number of data bits
#define	RTSER_5_BITS   0x00
#define	RTSER_6_BITS   0x01
#define	RTSER_7_BITS   0x02
#define	RTSER_8_BITS   0x03
#define	RTSER_DEF_BITS   RTSER_8_BITS
RTSER_xxx_STOPB
Number of stop bits
#define	RTSER_1_STOPB   0x00
	valid only in combination with 5 data bits
#define	RTSER_1_5_STOPB   0x01
	valid only in combination with 5 data bits
#define	RTSER_2_STOPB   0x01
	valid only in combination with 5 data bits
#define	RTSER_DEF_STOPB   RTSER_1_STOPB
	valid only in combination with 5 data bits
RTSER_xxx_HAND
Handshake mechanisms
#define	RTSER_NO_HAND   0x00
#define	RTSER_RTSCTS_HAND   0x01
#define	RTSER_DEF_HAND   RTSER_NO_HAND
RTSER_FIFO_xxx
Reception FIFO interrupt threshold
#define	RTSER_FIFO_DEPTH_1   0x00
#define	RTSER_FIFO_DEPTH_4   0x40
#define	RTSER_FIFO_DEPTH_8   0x80
#define	RTSER_FIFO_DEPTH_14   0xC0
#define	RTSER_DEF_FIFO_DEPTH   RTSER_FIFO_DEPTH_1
RTSER_TIMEOUT_xxx
Special timeout values, see also RTDM_TIMEOUT_xxx
#define	RTSER_TIMEOUT_INFINITE   RTDM_TIMEOUT_INFINITE
#define	RTSER_TIMEOUT_NONE   RTDM_TIMEOUT_NONE
#define	RTSER_DEF_TIMEOUT   RTDM_TIMEOUT_INFINITE
RTSER_xxx_TIMESTAMP_HISTORY
Timestamp history control
#define	RTSER_RX_TIMESTAMP_HISTORY   0x01
#define	RTSER_DEF_TIMESTAMP_HISTORY   0x00
RTSER_EVENT_xxx
Events bits
#define	RTSER_EVENT_RXPEND   0x01
#define	RTSER_EVENT_ERRPEND   0x02
#define	RTSER_EVENT_MODEMHI   0x04
#define	RTSER_EVENT_MODEMLO   0x08
#define	RTSER_DEF_EVENT_MASK   0x00
RTSER_SET_xxx
Configuration mask bits
#define	RTSER_SET_BAUD   0x0001
#define	RTSER_SET_PARITY   0x0002
#define	RTSER_SET_DATA_BITS   0x0004
#define	RTSER_SET_STOP_BITS   0x0008
#define	RTSER_SET_HANDSHAKE   0x0010
#define	RTSER_SET_FIFO_DEPTH   0x0020
#define	RTSER_SET_TIMEOUT_RX   0x0100
#define	RTSER_SET_TIMEOUT_TX   0x0200
#define	RTSER_SET_TIMEOUT_EVENT   0x0400
#define	RTSER_SET_TIMESTAMP_HISTORY   0x0800
#define	RTSER_SET_EVENT_MASK   0x1000
RTSER_LSR_xxx
Line status bits
#define	RTSER_LSR_DATA   0x01
#define	RTSER_LSR_OVERRUN_ERR   0x02
#define	RTSER_LSR_PARITY_ERR   0x04
#define	RTSER_LSR_FRAMING_ERR   0x08
#define	RTSER_LSR_BREAK_IND   0x10
#define	RTSER_LSR_THR_EMTPY   0x20
#define	RTSER_LSR_TRANSM_EMPTY   0x40
#define	RTSER_LSR_FIFO_ERR   0x80
#define	RTSER_SOFT_OVERRUN_ERR   0x0100
RTSER_MSR_xxx
Modem status bits
#define	RTSER_MSR_DCTS   0x01
#define	RTSER_MSR_DDSR   0x02
#define	RTSER_MSR_TERI   0x04
#define	RTSER_MSR_DDCD   0x08
#define	RTSER_MSR_CTS   0x10
#define	RTSER_MSR_DSR   0x20
#define	RTSER_MSR_RI   0x40
#define	RTSER_MSR_DCD   0x80
RTSER_MCR_xxx
Modem control bits
#define	RTSER_MCR_DTR   0x01
#define	RTSER_MCR_RTS   0x02
#define	RTSER_MCR_OUT1   0x04
#define	RTSER_MCR_OUT2   0x08
#define	RTSER_MCR_LOOP   0x10
Sub-Classes of RTDM_CLASS_SERIAL
#define	RTDM_SUBCLASS_16550A   0
IOCTLs
Serial device IOCTLs
#define	RTSER_RTIOC_GET_CONFIG   _IOR(RTIOC_TYPE_SERIAL, 0x00, struct rtser_config)
	Get serial device configuration.
#define	RTSER_RTIOC_SET_CONFIG   _IOW(RTIOC_TYPE_SERIAL, 0x01, struct rtser_config)
	Set serial device configuration.
#define	RTSER_RTIOC_GET_STATUS   _IOR(RTIOC_TYPE_SERIAL, 0x02, struct rtser_status)
	Get serial device status.
#define	RTSER_RTIOC_GET_CONTROL   _IOR(RTIOC_TYPE_SERIAL, 0x03, int)
	Get serial device's modem contol register.
#define	RTSER_RTIOC_SET_CONTROL   _IOW(RTIOC_TYPE_SERIAL, 0x04, int)
	Set serial device's modem contol register.
#define	RTSER_RTIOC_WAIT_EVENT   _IOR(RTIOC_TYPE_SERIAL, 0x05, struct rtser_event)
	Wait on serial device events according to previously set mask.
RTSER_BREAK_xxx
Break control
#define	RTSER_BREAK_CLR   0x00
	Serial device configuration.
#define	RTSER_BREAK_SET   0x01
	Serial device configuration.
#define	RTIOC_TYPE_SERIAL   RTDM_CLASS_SERIAL
	Serial device configuration.
typedef struct rtser_config	rtser_config_t
	Serial device configuration.
typedef struct rtser_status	rtser_status_t
	Serial device status.
typedef struct rtser_event	rtser_event_t
	Additional information about serial device events.

---

Detailed Description

Real-Time Driver Model for Xenomai, serial device profile header.

Note:

Copyright (C) 2005-2007 Jan Kiszka <[email protected]>

Xenomai is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Xenomai is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Xenomai; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.
