include/native/task.h File Reference

This file is part of the Xenomai project. More...

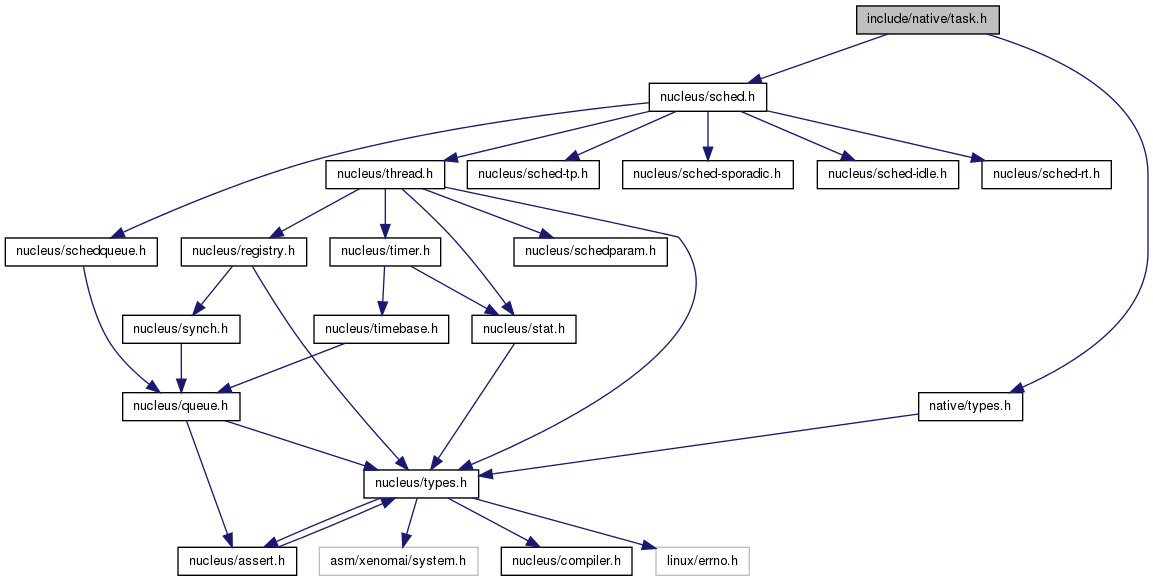

Include dependency graph for task.h:

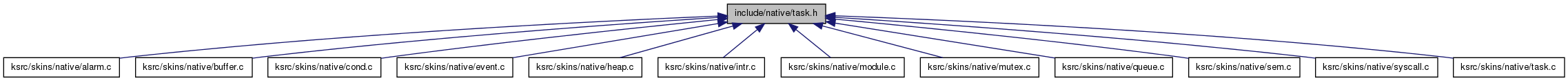

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	rt_task_info
	Structure containing task-information useful to users. More...
struct	rt_task_mcb
	Structure used in passing messages between tasks. More...
Defines
#define	T_BLOCKED   XNPEND
	See XNPEND.
#define	T_DELAYED   XNDELAY
	See XNDELAY.
#define	T_READY   XNREADY
	See XNREADY.
#define	T_DORMANT   XNDORMANT
	See XNDORMANT.
#define	T_STARTED   XNSTARTED
	See XNSTARTED.
#define	T_BOOST   XNBOOST
	See XNBOOST.
#define	T_LOCK   XNLOCK
	See XNLOCK.
#define	T_NOSIG   XNASDI
	See XNASDI.
#define	T_WARNSW   XNTRAPSW
	See XNTRAPSW.
#define	T_RPIOFF   XNRPIOFF
	See XNRPIOFF.
Typedefs
typedef struct rt_task_info	RT_TASK_INFO
	Structure containing task-information useful to users.
typedef struct rt_task_mcb	RT_TASK_MCB
	Structure used in passing messages between tasks.
Functions
int	rt_task_shadow (RT_TASK *task, const char *name, int prio, int mode)
	Turns the current Linux task into a native Xenomai task.
int	rt_task_bind (RT_TASK *task, const char *name, RTIME timeout)
	Bind to a real-time task.
static int	rt_task_unbind (RT_TASK *task)
	Unbind from a real-time task.
int	rt_task_join (RT_TASK *task)
	Wait on the termination of a real-time task.
int	rt_task_create (RT_TASK *task, const char *name, int stksize, int prio, int mode) __deprecated_in_kernel__
	Create a new real-time task.
int	rt_task_start (RT_TASK *task, void(*fun)(void *cookie), void *cookie)
	Start a real-time task.
int	rt_task_suspend (RT_TASK *task)
	Suspend a real-time task.
int	rt_task_resume (RT_TASK *task)
	Resume a real-time task.
int	rt_task_delete (RT_TASK *task)
	Delete a real-time task.
int	rt_task_yield (void)
	Manual round-robin.
int	rt_task_set_periodic (RT_TASK *task, RTIME idate, RTIME period)
	Make a real-time task periodic.
int	rt_task_wait_period (unsigned long *overruns_r)
	Wait for the next periodic release point.
int	rt_task_set_priority (RT_TASK *task, int prio)
	Change the base priority of a real-time task.
int	rt_task_sleep (RTIME delay)
	Delay the calling task (relative).
int	rt_task_sleep_until (RTIME date)
	Delay the calling task (absolute).
int	rt_task_unblock (RT_TASK *task)
	Unblock a real-time task.
int	rt_task_inquire (RT_TASK *task, RT_TASK_INFO *info)
	Inquire about a real-time task.
int	rt_task_notify (RT_TASK *task, rt_sigset_t signals)
	Send signals to a task.
int	rt_task_set_mode (int clrmask, int setmask, int *mode_r)
	Change task mode bits.
RT_TASK *	rt_task_self (void)
	Retrieve the current task.
int	rt_task_slice (RT_TASK *task, RTIME quantum)
	Set a task's round-robin quantum.
ssize_t	rt_task_send (RT_TASK *task, RT_TASK_MCB *mcb_s, RT_TASK_MCB *mcb_r, RTIME timeout)
	Send a message to a task.
int	rt_task_receive (RT_TASK_MCB *mcb_r, RTIME timeout)
	Receive a message from a task.
int	rt_task_reply (int flowid, RT_TASK_MCB *mcb_s)
	Reply to a task.
static int	rt_task_spawn (RT_TASK *task, const char *name, int stksize, int prio, int mode, void(*entry)(void *cookie), void *cookie)
	Spawn a new real-time task.
int	rt_task_same (RT_TASK *task1, RT_TASK *task2)
	Compare two task descriptors.

---

Detailed Description

This file is part of the Xenomai project.

Note:

Copyright (C) 2004 Philippe Gerum <[email protected]>

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

---

Typedef Documentation

typedef struct rt_task_info RT_TASK_INFO

Structure containing task-information useful to users.

See also:

rt_task_inquire()

typedef struct rt_task_mcb RT_TASK_MCB

Structure used in passing messages between tasks.

See also:

rt_task_send(), rt_task_reply(), rt_task_receive()
