Real-Time Driver Model for Xenomai, driver API header. More...

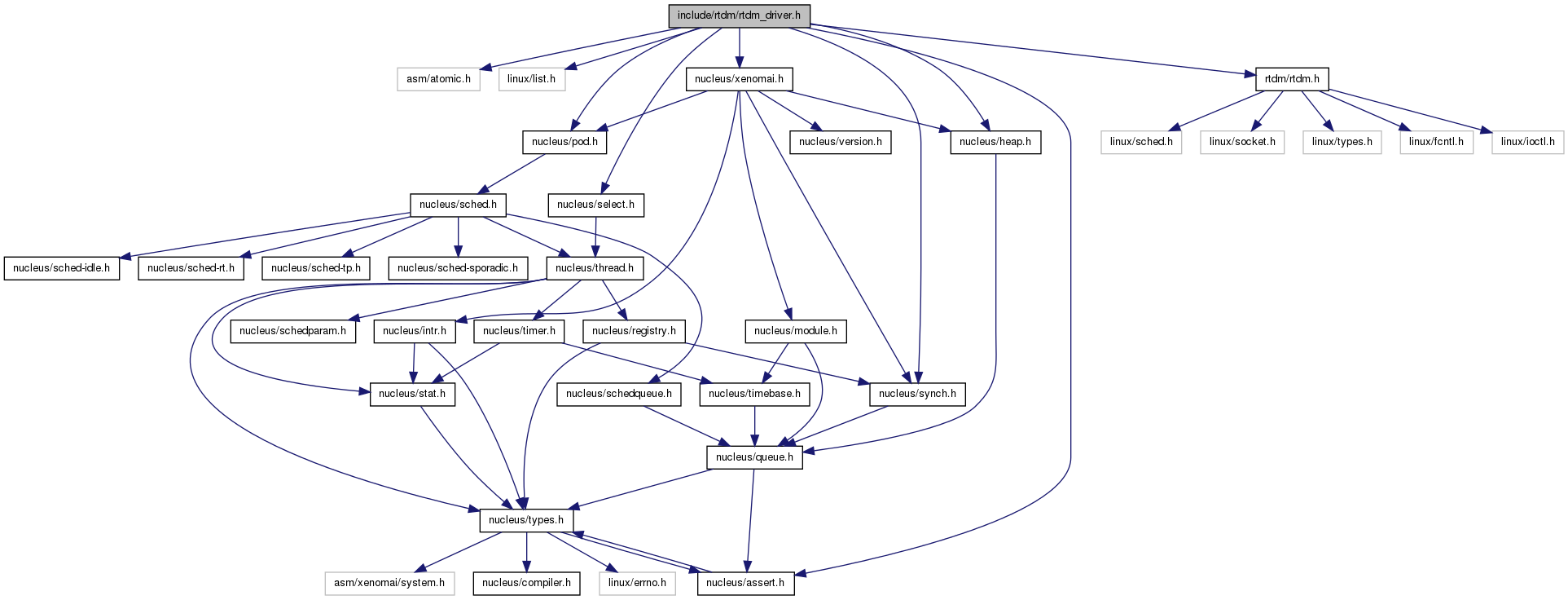

Include dependency graph for rtdm_driver.h:

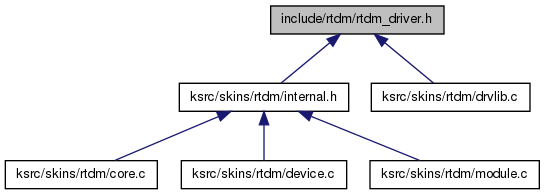

This graph shows which files directly or indirectly include this file:

Data Structures
struct	rtdm_operations
	Device operations. More...
struct	rtdm_dev_context
	Device context. More...
struct	rtdm_device
	RTDM device. More...
Defines
#define	rtdm_irq_get_arg(irq_handle, type) ((type *)irq_handle->cookie)
	Retrieve IRQ handler argument.
Device Flags
Static flags describing a RTDM device
#define	RTDM_EXCLUSIVE 0x0001
	If set, only a single instance of the device can be requested by an application.
#define	RTDM_NAMED_DEVICE 0x0010
	If set, the device is addressed via a clear-text name.
#define	RTDM_PROTOCOL_DEVICE 0x0020
	If set, the device is addressed via a combination of protocol ID and socket type.
#define	RTDM_DEVICE_TYPE_MASK 0x00F0
	Mask selecting the device type.
Context Flags
Dynamic flags describing the state of an open RTDM device (bit numbers)
#define	RTDM_CREATED_IN_NRT 0
	Set by RTDM if the device instance was created in non-real-time context.
#define	RTDM_CLOSING 1
	Set by RTDM when the device is being closed.
#define	RTDM_USER_CONTEXT_FLAG 8 /* first user-definable flag */
	Lowest bit number the driver developer can use freely.
Driver Versioning
Current revisions of RTDM structures, encoding of driver versions. See API Versioning for the interface revision.
#define	RTDM_DEVICE_STRUCT_VER 5
	Version of struct rtdm_device.
#define	RTDM_CONTEXT_STRUCT_VER 3
	Version of struct rtdm_dev_context.
#define	RTDM_SECURE_DEVICE 0x80000000
	Flag indicating a secure variant of RTDM (not supported here)
#define	RTDM_DRIVER_VER(major, minor, patch) (((major & 0xFF) << 16) \| ((minor & 0xFF) << 8) \| (patch & 0xFF))
	Version code constructor for driver revisions.
#define	RTDM_DRIVER_MAJOR_VER(ver) (((ver) >> 16) & 0xFF)
	Get major version number from driver revision code.
#define	RTDM_DRIVER_MINOR_VER(ver) (((ver) >> 8) & 0xFF)
	Get minor version number from driver revision code.
#define	RTDM_DRIVER_PATCH_VER(ver) ((ver) & 0xFF)
	Get patch version number from driver revision code.
Global Lock across Scheduler Invocation
#define	RTDM_EXECUTE_ATOMICALLY(code_block)
	Execute code block atomically.
RTDM_IRQTYPE_xxx
Interrupt registrations flags
#define	RTDM_IRQTYPE_SHARED XN_ISR_SHARED
	Enable IRQ-sharing with other real-time drivers.
#define	RTDM_IRQTYPE_EDGE XN_ISR_EDGE
	Mark IRQ as edge-triggered, relevant for correct handling of shared edge-triggered IRQs.
RTDM_IRQ_xxx
Return flags of interrupt handlers
#define	RTDM_IRQ_NONE XN_ISR_NONE
	Unhandled interrupt.
#define	RTDM_IRQ_HANDLED XN_ISR_HANDLED
	Denote handled interrupt.
Task Priority Range
Maximum and minimum task priorities
#define	RTDM_TASK_LOWEST_PRIORITY XNSCHED_LOW_PRIO
#define	RTDM_TASK_HIGHEST_PRIORITY XNSCHED_HIGH_PRIO
Task Priority Modification
Raise or lower task priorities by one level
#define	RTDM_TASK_RAISE_PRIORITY (+1)
#define	RTDM_TASK_LOWER_PRIORITY (-1)
Typedefs
typedef int(*	rtdm_irq_handler_t )(rtdm_irq_t *irq_handle)
	Interrupt handler.
typedef void(*	rtdm_nrtsig_handler_t )(rtdm_nrtsig_t nrt_sig, void *arg)
	Non-real-time signal handler.
typedef void(*	rtdm_timer_handler_t )(rtdm_timer_t *timer)
	Timer handler.
typedef void(*	rtdm_task_proc_t )(void *arg)
	Real-time task procedure.
Operation Handler Prototypes
typedef int(*	rtdm_open_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info, int oflag)
	Named device open handler.
typedef int(*	rtdm_socket_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info, int protocol)
	Socket creation handler for protocol devices.
typedef int(*	rtdm_close_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info)
	Close handler.
typedef int(*	rtdm_ioctl_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info, unsigned int request, void __user *arg)
	IOCTL handler.
typedef int(*	rtdm_select_bind_handler_t )(struct rtdm_dev_context context, rtdm_selector_t selector, enum rtdm_selecttype type, unsigned fd_index)
	Select binding handler.
typedef ssize_t(*	rtdm_read_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info, void *buf, size_t nbyte)
	Read handler.
typedef ssize_t(*	rtdm_write_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info, const void *buf, size_t nbyte)
	Write handler.
typedef ssize_t(*	rtdm_recvmsg_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info, struct msghdr *msg, int flags)
	Receive message handler.
typedef ssize_t(*	rtdm_sendmsg_handler_t )(struct rtdm_dev_context context, rtdm_user_info_t user_info, const struct msghdr *msg, int flags)
	Transmit message handler.
Enumerations
RTDM_SELECTTYPE_xxx
Event types select can bind to
enum	rtdm_selecttype { RTDM_SELECTTYPE_READ = XNSELECT_READ, RTDM_SELECTTYPE_WRITE = XNSELECT_WRITE, RTDM_SELECTTYPE_EXCEPT = XNSELECT_EXCEPT }
RTDM_TIMERMODE_xxx
Timer operation modes
enum	rtdm_timer_mode { RTDM_TIMERMODE_RELATIVE = XN_RELATIVE, RTDM_TIMERMODE_ABSOLUTE = XN_ABSOLUTE, RTDM_TIMERMODE_REALTIME = XN_REALTIME }
Functions
static void *	rtdm_context_to_private (struct rtdm_dev_context *context)
	Locate the driver private area associated to a device context structure.
static struct rtdm_dev_context *	rtdm_private_to_context (void *dev_private)
	Locate a device context structure from its driver private area.
int	rtdm_dev_register (struct rtdm_device *device)
	Register a RTDM device.
int	rtdm_dev_unregister (struct rtdm_device *device, unsigned int poll_delay)
	Unregisters a RTDM device.
struct rtdm_dev_context *	rtdm_context_get (int fd)
	Retrieve and lock a device context.
int	rtdm_select_bind (int fd, rtdm_selector_t *selector, enum rtdm_selecttype type, unsigned fd_index)
	Bind a selector to specified event types of a given file descriptor.
int	rtdm_irq_request (rtdm_irq_t irq_handle, unsigned int irq_no, rtdm_irq_handler_t handler, unsigned long flags, const char device_name, void *arg)
	Register an interrupt handler.
void	rtdm_timer_destroy (rtdm_timer_t *timer)
	Destroy a timer.
int	rtdm_timer_start (rtdm_timer_t *timer, nanosecs_abs_t expiry, nanosecs_rel_t interval, enum rtdm_timer_mode mode)
	Start a timer.
void	rtdm_timer_stop (rtdm_timer_t *timer)
	Stop a timer.
int	rtdm_task_init (rtdm_task_t task, const char name, rtdm_task_proc_t task_proc, void *arg, int priority, nanosecs_rel_t period)
	Intialise and start a real-time task.
void	rtdm_task_busy_sleep (nanosecs_rel_t delay)
	Busy-wait a specified amount of time.
void	rtdm_toseq_init (rtdm_toseq_t *timeout_seq, nanosecs_rel_t timeout)
	Initialise a timeout sequence.
void	rtdm_event_init (rtdm_event_t *event, unsigned long pending)
	Initialise an event.
int	rtdm_event_select_bind (rtdm_event_t event, rtdm_selector_t selector, enum rtdm_selecttype type, unsigned fd_index)
	Bind a selector to an event.
int	rtdm_event_wait (rtdm_event_t *event)
	Wait on event occurrence.
int	rtdm_event_timedwait (rtdm_event_t event, nanosecs_rel_t timeout, rtdm_toseq_t timeout_seq)
	Wait on event occurrence with timeout.
void	rtdm_event_signal (rtdm_event_t *event)
	Signal an event occurrence.
void	rtdm_event_clear (rtdm_event_t *event)
	Clear event state.
void	rtdm_sem_init (rtdm_sem_t *sem, unsigned long value)
	Initialise a semaphore.
int	rtdm_sem_select_bind (rtdm_sem_t sem, rtdm_selector_t selector, enum rtdm_selecttype type, unsigned fd_index)
	Bind a selector to a semaphore.
int	rtdm_sem_down (rtdm_sem_t *sem)
	Decrement a semaphore.
int	rtdm_sem_timeddown (rtdm_sem_t sem, nanosecs_rel_t timeout, rtdm_toseq_t timeout_seq)
	Decrement a semaphore with timeout.
void	rtdm_sem_up (rtdm_sem_t *sem)
	Increment a semaphore.
void	rtdm_mutex_init (rtdm_mutex_t *mutex)
	Initialise a mutex.
int	rtdm_mutex_lock (rtdm_mutex_t *mutex)
	Request a mutex.
int	rtdm_mutex_timedlock (rtdm_mutex_t mutex, nanosecs_rel_t timeout, rtdm_toseq_t timeout_seq)
	Request a mutex with timeout.
Spinlock with Preemption Deactivation
#define	RTDM_LOCK_UNLOCKED RTHAL_SPIN_LOCK_UNLOCKED
	Static lock initialisation.
#define	rtdm_lock_init(lock) rthal_spin_lock_init(lock)
	Dynamic lock initialisation.
#define	rtdm_lock_get(lock) rthal_spin_lock(lock)
	Acquire lock from non-preemptible contexts.
#define	rtdm_lock_put(lock) rthal_spin_unlock(lock)
	Release lock without preemption restoration.
#define	rtdm_lock_get_irqsave(lock, context) rthal_spin_lock_irqsave(lock, context)
	Acquire lock and disable preemption.
#define	rtdm_lock_put_irqrestore(lock, context) rthal_spin_unlock_irqrestore(lock, context)
	Release lock and restore preemption state.
#define	rtdm_lock_irqsave(context) rthal_local_irq_save(context)
	Disable preemption locally.
#define	rtdm_lock_irqrestore(context) rthal_local_irq_restore(context)
	Restore preemption state.
typedef rthal_spinlock_t	rtdm_lock_t
	Lock variable.
typedef unsigned long	rtdm_lockctx_t
	Variable to save the context while holding a lock.

Detailed Description

Real-Time Driver Model for Xenomai, driver API header.

Note:: Copyright (C) 2005-2007 Jan Kiszka <[email protected]>; Copyright (C) 2005 Joerg Langenberg <[email protected]>; Copyright (C) 2008 Gilles Chanteperdrix <[email protected]>

Xenomai is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Xenomai is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Xenomai; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.
