# 编码:utf-8
# 我们启用了新的python 3打印语法
from __future__ import print_function

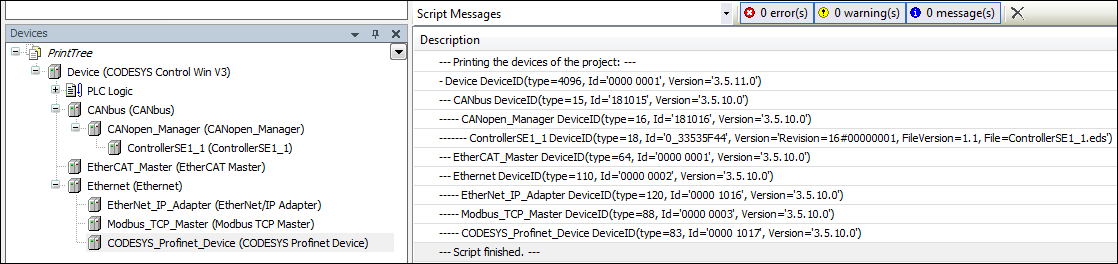

# 打印出当前打开的项目中的所有设备。

打印("——打印项目的设备: ---")

# 定义打印功能。此功能以
# 所谓的“ docstring”，这是推荐的记录方式
# python中的功能.
def print_tree(treeobj, depth=0):
    “”“打印设备及其所有子设备

     参数：
    treeobj -- 要打印的对象
    depth -- 树中的当前深度（默认值为0）。

    递归调用使用参数“ depth”
     不应由用户提供。
    """

    # 如果当前对象是设备，我们将打印名称和设备标识。
    if treeobj.is_device:
        名称 = treeobj.get_name(False)
        设备 = treeobj.get_device_identification()
        print("{0}- {1} {2}".format("--"*depth, name, deviceid))

    # 我们为子对象递归调用print_tree函数。
    for child in treeobj.get_children(False):
        print_tree(child, depth+1)

# 我们遍历所有顶级对象，并为它们调用print_tree函数。
for obj in projects.primary.get_children():
    print_tree(obj)

print("--- Script finished.---")

# 编码:utf-8
from __future__ import print_function

# 如有必要，关闭打开的工程：
if projects.primary:
    projects.primary.close()

# 打开工程
proj = projects.open(r"D:\data\projects\Ampel.project")

# 将“ Ampel.project”设置为活动应用程序
app = proj.active_application
onlineapp = online.create_online_application(app)

# 登录到设备
onlineapp.login(OnlineChangeOption.Try, True)

# 将应用程序的状态设置为“运行”，如果不在“运行”中
if not onlineapp.application_state == ApplicationState.run:
    onlineapp.start()

# 延时1秒
system.delay(1000)

# 读取变量iVar1
value = onlineapp.read_value("PLC_PRG.iVar1")

# 在消息视图或命令行中显示值
print(value)

# 从设备退出并关闭“ Ampel.project”
onlineapp.logout()
proj.close()


# 编码:utf-8
from __future__ import print_function

# 必要时关闭当前项目，然后打开“ ScriptTest.project”
if not projects.primary == None:
    projects.primary.close()
project = projects.open("D:\\Data\\projects\\scriptTest.project")

# 检索活动的应用程序
application = project.active_application

# 创建在线申请
online_application = online.create_online_application(application)

# 登录到应用程序。
online_application.login(OnlineChangeOption.Try, True)

# 必要时启动PLC
if not online_application.application_state == ApplicationState.run:
    online_application.start()

# 延时2秒
system.delay(2000)

# 打开配方文件以读取值。
recipe_input_file = open("D:\\Data\\projects\\RecipeInput.txt", "r")

watch_expressions = []

for watch_expression in recipe_input_file:
    watch_expressions.append(watch_expression.strip())

print watch_expressions

# 从控制器读取值
watch_values = online_application.read_values(watch_expressions)

print watch_values

# 打开输出文件以写入值
recipe_output_file = open("D:\\Data\\projects\\RecipeOutput.txt", "w")
for i in range(len(watch_expressions)):
    recipe_output_file.write(watch_expressions[i])
    recipe_output_file.write(" = ")
    recipe_output_file.write(watch_values[i])
    recipe_output_file.write("\n")

# 关闭文件
recipe_input_file.close()
recipe_output_file.close()

# 发送邮件
# 导入各自的库
import smtplib
from email.mime.text import MIMEText

#打开输出文件
recipe_output_file = open("D:\\Data\\projects\\RecipeOutput.txt", "r")
mail = MIMEText(recipe_output_file.read())
recipe_output_file.close()

#电子邮件地址发件人和收件人
fromm = "[email protected]"
to = "[email protected]"

# 设置发件人和收件人
mail["Subject"] = "Attention value has changed"
mail["From"] = fromm
mail["To"] = to

# 发送邮件
smtp = smtplib.SMTP("name of smtp server")
smtp.sendmail(fromm, [to], mail.as_string())
smtp.quit()

# 退出并关闭应用程序
online_application.logout()
project.close()

# 编码:utf-8
from __future__ import print_function

STRUCT_CONTENT = """\
    a : BOOL;
    b : BIT;
    c : BIT;
"""

UNION_WHOLE = """\
TYPE MyUnion :
UNION
    Zahl : INT;
    Prozent : MyAlias;
    Bits : MyStruct;
END_UNION
END_TYPE
"""

proj = projects.primary

folder = proj.find('DataTypes', recursive = True)[0]

# 创建一个结构DUT，并将变量列表插入到右侧
# 放在第二行第0行（行编号从第0行开始）
struktur = folder.create_dut('MyStruct') # DutType.Structure is the default
struktur.textual_declaration.insert(2, 0, STRUCT_CONTENT)

# 别名类型通过基本类型获取其“内容”，该基本类型将最终结束
# 作为声明部分中的一行：
# TYPE MyAlias : INT (0..100); END_TYPE
bereich = folder.create_dut('MyAlias', DutType.Alias, "INT (0..100)")

# 与其将变量注入到现有的声明中，
# 也可以只替换完整的声明部分，包括
# 样板代码。
union = folder.create_dut('MyUnion', DutType.Union)
union.textual_declaration.replace(UNION_WHOLE)

# 编码:utf-8
from __future__ import print_function

"""Performs some tests on the messagestore and UI."""

print("Some Error, Warning and Information popups:")
system.ui.error("Fatal error: Everything is OK.:-)")
system.ui.warning("Your bank account is surprisingly low")
system.ui.info("Just for your information: 42")

print("Now, we ask the user something.")
res = system.ui.prompt("Do you like this?", PromptChoice.YesNo, PromptResult.Yes);
print("The user selected '%s'" % res)

print("Now, the user can choose between custom options:")
res = system.ui.choose("Please choose:", ("First", 2, 7.5, "Something else"))
print("The user selected option '%s'" % str(res)) # res is a tuple

print("Now, the user can choose several options:")
res = system.ui.select_many("Please select one or more options", PromptChoice.OKCancel, PromptResult.OK, ("La Premiere", "The Second", "Das Dritte"))
print("The returned result is: '%s'" % str(res)) # res is a tuple

print("Now, the user can select files and directories")
res = system.ui.open_file_dialog("Choose multiple files:", filter="Text files (*.txt)|*.txt|Image Files(*.BMP;*.JPG;*.GIF)|*.BMP;*.JPG;*.GIF|All files (*.*)|*.*", filter_index = 0, multiselect=True)
print("The user did choose: '%s'" % str(res)) # res is a tuple as multiselect is true.

res = system.ui.save_file_dialog("Choose a file to save:", filter="Text files (*.txt)|*.txt|Image Files(*.BMP;*.JPG;*.GIF)|*.BMP;*.JPG;*.GIF|All files (*.*)|*.*", filter_index = 0)
print("The user did choose: '%s'" % res)

res = system.ui.browse_directory_dialog("Choose a directory", path="C:\\")
print("The user did choose: '%s'" % res)

print("Now we query a single line string")
res = system.ui.query_string("What's your name?")
print("Nice to meet you, dear %s."% res)

print("Now we query a multi line string")
res = system.ui.query_string("Please tell me a nice story about your life!", multi_line=True)
if (res):
    print("Huh, that has been a long text, at least %s characters!"% len(res))
else:
    print("Hey, don't be lazy!")

print("Username and passwort prompts...")
res = system.ui.query_password("Please enter your favourite password!", cancellable=True)
if res:
    print("Huh, it's very careless to tell me your favourite password '%s'!"% res)
else:
    print("Ok, if you don't want...")

res = system.ui.query_credentials("Now, for real...")
if res:
    print("Username '%s' and password '%s'" % res) # res is a 2-tuple
else:
    print("Sigh...")

# 编码:utf-8
from __future__ import print_function

proj = projects.load("D:\Some.library")

info = proj.get_project_info()

# 设置一些值
info.company = "Test Library Ltd"
info.title = "Script Test Project"
info.version = (0, 8, 15, 4711)
info.default_namespace = "testlibrary"
info.author = "Python von Scriptinger"

# 库工具链中推荐的一些值
info.values["DefaultNamespace"] = "testlibrary"
info.values["Placeholder"] = "testlibrary"
info.values["DocFormat"] = "reStructuredText"

# 现在我们设置一个自定义/供应商特定的值。
info.values["SpecialDeviceId"] = "PLC0815_4711"

# 启用访问器功能的生成，因此IEC
# 应用程序可以在信息屏幕中显示版本。
info.change_accessor_generation(True)

# 并将库设置为发布
info.released = True;

proj.save()

# 编码:utf-8
# 通过命令行svn客户端从Subversion导入PLCOpenXML中的设备。

# 我们启用了新的python 3打印语法
from __future__ import print_function

import sys, os

# 一些变量定义：
SVNEXE = r"C:\Program Files\Subversion\bin\svn.exe"
XMLURL = "file:///D:/testrepo/testfolder/TestExport.xml"
PROJECT = r"D:\test.project"

# 清理所有打开的工程：
if projects.primary:
    projects.primary.close()

# 从Subversion获取plcopenxml数据。
# 我们将程序的输出捕获到xmldata变量中。
# “ with”结构会自动为我们关闭打开的管道。
with os.popen('"' + SVNEXE + '" cat ' + XMLURL, 'r') as pipe:
    xmldata = pipe.read()

# 创建一个新的工程:
proj = projects.create(PROJECT)

# 将数据导入工程。
proj.import_xml(xmldata, False)

# 最后保存。:-)
proj.save()

print("--- Script finished.---")

import tempfile

if projects.primary:
    projects.primary.close()

tempdir = tempfile.mkdtemp()
URL = "svn://localhost/testrepo/trunk/SvnTestLibrary/"

proj = svn.checkout(URL, tempdir, "testlibrary", as_library=True)
proj.save()

repo = librarymanager.repositories[0]
librarymanager.install_library(proj.path, repo, True)

proj.close()
